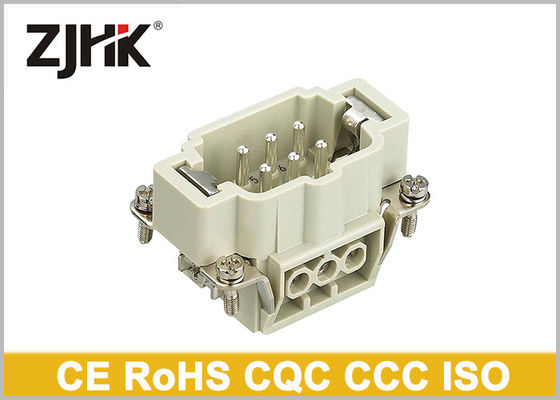

HDC Heavy Duty Connector 6 Pin Screw Terminal replace Harting perfectly

HDC Heavy Duty Connector 6 Pin Screw Terminal replace Harting perfectly

    • HDC  Heavy Duty Connector 6 Pin Screw Terminal replace Harting perfectly
    • HDC  Heavy Duty Connector 6 Pin Screw Terminal replace Harting perfectly
  • HDC  Heavy Duty Connector 6 Pin Screw Terminal replace Harting perfectly

    Product Details:

    Place of Origin: China
    Brand Name: ZJHK
    Certification: CE, RoHS, SGS, CQC
    Model Number: HE-006-M / HE-006-F

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Standard Export Cartons
    Delivery Time: 3 Days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Order Number: 09330062601 & 09330062701 Model Type:: Standand Connector HE Series
    Material: Polycarbonate Sabic 3412 ECR Wire Connection: Screw
    Housing: H6B Series Nos Of Contact: 6
    High Light:

    8 pin rectangular connector

    ,

    heavy duty power connectors



    HDC  Heavy Duty Connector 6 Pin Screw Terminal replace Harting perfectly 0





    HDC Weidmuller Type Heavy Duty Connector 6 Pin Screw Terminal 09330062601 0930062701




    Technical data

    Category Inserts
    Series HE
    Version
    Termination method Screw termination
    Gender Male&Female
    Size 6B
    Number of contacts 6
    PE contact Yes
    Technical characteristics
    Conductor cross-section 0.75 ... 2.5 mm²
    Conductor cross-section AWG 18 ... AWG 14
    Rated current 16 A
    Rated voltage 500 V
    Rated impulse voltage 6 kV
    Pollution degree 3
    Rated voltage acc. to UL 600 V
    Rated voltage acc. to CSA 600 V
    Insulation resistance ≥ 1010 Ω
    Contact resistance ≤ 1 mΩ
    Limiting temperature -40 ... +125 °C
    Stripping length 7.5 mm
    Mating cycles ≥ 500
    Material properties
    Material (insert) Polycarbonate
    Colour (insert) pebble grey
    Material (contacts) Copper alloy
    Surface (contacts) Silver plated
    Commercial data
    Packaging size 1
    Country of origin China





    HDC  Heavy Duty Connector 6 Pin Screw Terminal replace Harting perfectly 1


    HDC  Heavy Duty Connector 6 Pin Screw Terminal replace Harting perfectly 2
    Features

    1) Every spare parts are manufactured at our workshop.

    2) Completed new polycarbonate material supply by SABIC LEXAN 3412 ECR​

    3) Every pins are made by standand copper alloy H62 with 3 μm silver plating.​

    4) High temperature power coating secures our covers against harsh enviroment.​

    5) Quality control conforms to ISO9001:2008 - each spare part is checked before assembling, each insert and cover is checked before delivery to customers.  ​

    6) Standand design to fit most of international brands such as Harting Connectors, Weidmuller Connectors, Molex Connectors, Connectors, Sibas Connectors, ILME Connectors, Phoenix Connectors.

    HDC  Heavy Duty Connector 6 Pin Screw Terminal replace Harting perfectly 3


     HDC  Heavy Duty Connector 6 Pin Screw Terminal replace Harting perfectly 4
