16A Heavy Duty Rectangular Connectors

16A Heavy Duty Rectangular Connectors

  • 16A Heavy Duty Rectangular Connectors
  • 16A Heavy Duty Rectangular Connectors
  • 16A Heavy Duty Rectangular Connectors
16A Heavy Duty Rectangular Connectors
Product Details:
Place of Origin: China
Brand Name: ZJHK
Certification: CE, RoHS, SGS, CQC,
Model Number: HE-024-F
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Standard Export Cartons
Delivery Time: 7 Days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Order Number: 09330242701 Model Type:: Standard Connector HE Series
Material: Polycarbonate Sabic 3412 ECR Wire Connection: Screw
Housing: H24B Nos Of Contact: 6
High Light:

16A Heavy Duty Rectangular Connectors

,

09330242701 Heavy Duty Rectangular Connectors

,

Polycarbonate Heavy Duty Rectangular Connectors

ZJHK 24pin waterproof connector

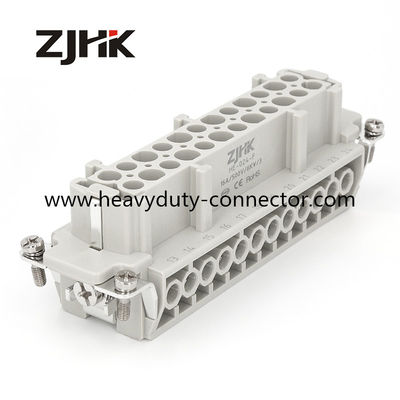

Inserts, Screw termination, Female, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, 500V .



Size: 24 B, Contacts: 24, Conductor cross-section: 0.75 ... 2.5mm², Copper alloy, Silver plated



The hot runner and temperature controller best choice.

16A Heavy Duty Rectangular Connectors 0

Controller box solution.

16A Heavy Duty Rectangular Connectors 1

Insert with bulkhead housing +plastic cover.



Technical data



Identification
Category  Inserts
Series  HE
Termination method  Screw termination
Gender  Female
Size  24B
Number of contacts  24Pin
PE contact  Yes
Contact identification  0.75 ... 2.5 mm²
Conductor cross-section

  AWG 18 ... AWG 14

Technical characteristics
Rated current  16A
Rated voltage  500V
Rated impulse voltage  6 kV
Rated voltage acc. to UL  600 V
Insulation resistance  ≥ 1010 Ω
Limiting temperature  -40 ... +125 °C
Mating cycles  ≥ 500
Material properties
Material (insert)  Polycarbonate
RoHS  Compliant with exemption
Packaging size  1
Net weight  122.4g
Order Number  09330242701









16A Heavy Duty Rectangular Connectors 2


Our Services



1. We are professional supplier,so we provide Low MOQ: It can meet your business very well.
2. We work with dozens of factories to ensure competitive price, We also will treat you as our friends.
3. Inspections:100% test before delivery.Package will do after several discussions with you.
4. OEM and ODM are acceptable,Please send us your design and other important information. OEM are always welcome.
