Hot Runner Temperature Connector
  • name
  • name
  • name

Hot Runner Temperature Connector

MOQ: 5
Price: Negotiable
Standard Packaging: Standard Export Cartons
Delivery Period: 7 Days
Payment Method: L/C, T/T, Western Union, Paypal
Supply Capacity: 100,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
CE, RoHS, SGS, CQC,
Model Number
HE-016-M
Order Number:
09330062716
Model Type::
Standard Connector HE Series
Material:
Polycarbonate Sabic 3412 ECR
Wire Connection:
Cage-clamp Termination
Housing:
H6B Series
Nos Of Contact:
6
Highlight:

heavy duty 2 pin connector

,

heavy duty power connectors

Product Description

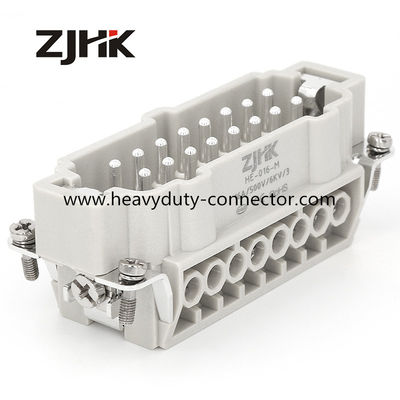

ZJHK HE-016-M 16Pin Industrial connector

connect machine with controller



Part number:09330162601

Technical data

Category  Inserts
Type  HE SERIES
Version
Termination method  Screw termination
Gender  Male
Size  16B
With wire protection  Yes
PE contact  Yes
Technical characteristics
Conductor cross-section  0.14 ... 2.5 mm²
Rated current  16A
Rated voltage  500 V
Rated impulse voltage  6 kV
Rated voltage acc. to UL  600V
Insulation resistance  > 1010 Ω
Contact resistance  ≤ 1 mΩ
Mating cycles  ≥ 500
Material (insert)  Polycarbonate
Colour (insert)  RAL 7032 (pebble grey)
Material (contacts)  Copper alloy
Surface (contacts)  Silver plated and Gold plated
Material flammability class acc. to UL 94  V-0







MORE DEATILS:
Hot Runner Temperature Connector 0

Perfect for Hot runnber connector 16Amp  16Pin

Hot Runner Temperature Connector 1






Services



1. We are professional supplier,so we provide Low MOQ: It can meet your business very well.
2. We work with dozens of factories to ensure competitive price, We also will treat you as our friends.
3. Inspections:100% test before delivery.Package will do after several discussions with you.
4. Free samples for your test,The products are directly from our factory. So it saves a lot secondary cost.
5. OEM and ODM are acceptable,Please send us your design and other important information. OEM are always welcome.
