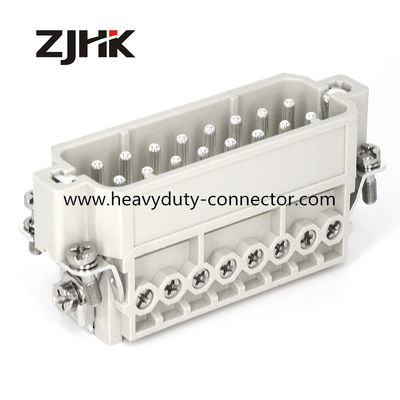

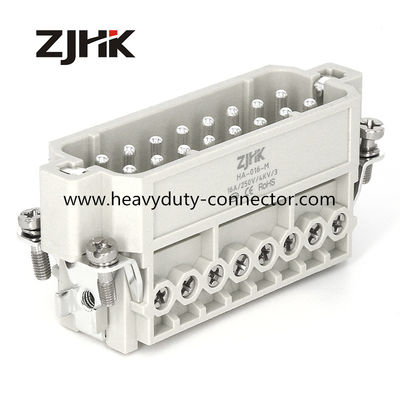

16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector

16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector

    • 16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector
    • 16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector
    • 16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector
  • 16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector

    Product Details:

    Place of Origin: China
    Brand Name: ZJHK
    Certification: CE, RoHS, SGS, CQC,
    Model Number: HA-016-M

    Payment & Shipping Terms:

    Minimum Order Quantity: 5
    Price: Negotiable
    Packaging Details: Standard Export Cartons
    Delivery Time: 7 Days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Order Number: 09200162612 Model Type:: Slim Connector HA Series
    Material: Polycarbonate Sabic 3412 ECR Wire Connection: Screw
    Housing: H16A Series Nos Of Contact: 16



    HA Series 16Pin Rectangular Heavy Duty Connector 16 Amp male Plug Scoket

    SAME AS Han 16A-STI-S

    Inserts, Screw termination, Male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 16 A, Contacts: 16




    Part number: 09 20 016 2612

    Description
    1). We provide full range of heavy duty connectors, our customers can select the right connectors per their requirements
    2). Our housing and inserts are compatible with all of famous brands in market.
    3). We provide various of connection type: Screw Termination, Crimp Termination, Cage clamp Termination, and the wire range reaches to 4mm2
    4). We can make everything in a single housing: signals, data, power, and pneumatics intergated
    5). Our connectors are ready for IP65 or IP68 with good surfaces and seals.



    Technical data



    Identification
    Category  Inserts
    Series  HA
    Version
    Termination method  Screw termination
    Gender  Male
    Size  16 A
    Number of contacts  16
    PE contact  Yes
    Technical characteristics
    Conductor cross-section  0.14 ... 4 mm²
    Rated current  16 A
    Rated voltage  250 V
    Rated impulse voltage  4 kV
    Pollution degree

     3

    Rated voltage acc. to UL  600 V
    Insulation resistance  ≥ 1010 Ω
    Limiting temperature  -40 ... +125 °C
    Tightening torque  0.5 Nm
    Mating cycles  ≥ 500
    Material properties
    Material (insert)  Polycarbonate
    Colour (insert)  RAL 7032 (pebble grey)
    Material (contacts)  Copper alloy
    Surface (contacts)  Silver plated
    RoHS  compliant with exemption
    Commercial data
    Packaging size  1
    Net weight  64 g
    Country of origin  China





    Match:
    Hood and Housing - H16A Series
    Hood - Side Entry / Top Entry - High Construction for larger wire is available
    Housing - Bulkhead / Surface Mounting / Cable to Cable
    Locking levers : Double in Stainless Steel or Zinc plated Steel
    Protective covers: plastic or metal cover optional
    Thread: PG16, PG21,/ M20, M25



    16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector



    Design drowing:

    16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector



    What's our advantage:


    16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector

    16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector
