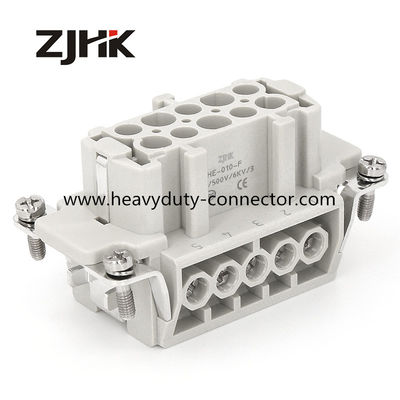

500V Military Vehicle Heavy Duty Connector 16A 10 Pin Female Terminal 09330102701
  • name
  • name
  • name

500V Military Vehicle Heavy Duty Connector 16A 10 Pin Female Terminal 09330102701

MOQ: 5
Price: Negotiable
Standard Packaging: Standard Export Cartons
Delivery Period: 7 Days
Payment Method: L/C, T/T, Western Union, Paypal
Supply Capacity: 100,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
CE, RoHS, SGS, CQC,
Model Number
HE-010-F
Order Number:
09330102701
Model Type::
Standard Connector HE Series
Material:
Polycarbonate Sabic 3412 ECR
Wire Connection:
Screw
Housing:
H10B Series
Nos Of Contact:
10
Highlight:

10 Pin Military Vehicle Heavy Duty Connector

,

Heavy Duty Connector Female Terminal

,

heavy duty connector 16a 10 pin

Product Description



Replace

Han 10 E BU-S Insert Female  Match Harting Male part.



Inserts, Screw termination, Female, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.75 ... 2.5mm², Copper alloy, Silver plated



Support  Industrial 4.0  solution

500V Military Vehicle Heavy Duty Connector 16A 10 Pin Female Terminal 09330102701 0





Technical data

Identification
Category Inserts
Series HE
Version
Termination method Screw termination
Gender Female
Size 10 B
Number of contacts 10
PE contact Yes
Material (contacts) Copper alloy  Silver plated
Technical characteristics
Conductor cross-section 0.75 ... 2.5 mm²
Conductor cross-section AWG 18 ... AWG 14
Rated current 16 A
Rated voltage 500 V
Rated impulse voltage 6 kV
Pollution degree 3
Rated voltage acc. to UL 600 V
Rated voltage acc. to CSA 600 V
Insulation resistance > 1010 Ω
Limiting temperature -40 ... +125 °C
Mating cycles ≥ 500
Material properties
Material (insert) Polycarbonate
Colour (insert) RAL 7032 (pebble grey)
Material flammability class acc. to UL 94 V-0
RoHS compliant
Commercial data
Packaging size 1
Net weight 64g
Country of origin China
China customs tariff number 8536901900
eCl@ss 27440205 Contact insert for industrial connectors



Design drawing:

500V Military Vehicle Heavy Duty Connector 16A 10 Pin Female Terminal 09330102701 1



Industrial 4.0 solution



ABB KUKA ROBOT  BEST CHOICE

500V Military Vehicle Heavy Duty Connector 16A 10 Pin Female Terminal 09330102701 2




500V Military Vehicle Heavy Duty Connector 16A 10 Pin Female Terminal 09330102701 3

                   500V Military Vehicle Heavy Duty Connector 16A 10 Pin Female Terminal 09330102701 4





500V Military Vehicle Heavy Duty Connector 16A 10 Pin Female Terminal 09330102701 5


Our Services



1. We are professional supplier,so we provide Low MOQ: It can meet your business very well.
2. We work with dozens of factories to ensure competitive price, We also will treat you as our friends.
3. Inspections:100% test before delivery.Package will do after several discussions with you.
4. Free samples for your test,The products are directly from our factory. So it saves a lot secondary cost.
