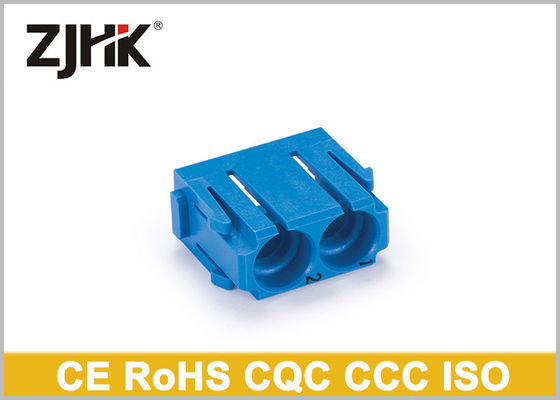

09140024501 Han Pneumatic Heavy Duty Electrical Connector Polycarbonate Material

09140024501 Han Pneumatic Heavy Duty Electrical Connector Polycarbonate Material

  • 09140024501 Han Pneumatic Heavy Duty Electrical Connector Polycarbonate Material
  • 09140024501 Han Pneumatic Heavy Duty Electrical Connector Polycarbonate Material
09140024501 Han Pneumatic Heavy Duty Electrical Connector Polycarbonate Material
Product Details:
Place of Origin: China
Brand Name: ZJHK
Certification: CE, SGS, CQC, RoHS
Model Number: HMP-002/HMP-003
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotible
Packaging Details: Standard Export Cartons
Delivery Time: 5 Days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Order Number: 09140024501 / 09140034501 Model Type:: Modular Connector HM Series
Material: Polycarbonate Colour: Blue
Diameter: 6.0mm Or 1.6 / 3 / 4mm
High Light:

industrial electrical connectors

,

heavy duty power connector

09140024501 09140034501 Han Pneumatic Modular Heavy Duty Connector

Description
Heavy duty connectors are specifically designed for applications in extreme and rough environments.Their modular design makes the distribution of power, signals, pneumatic and data simple and flexible.

1) For the transmission of clean and dry compressed air.

2) Female contacts with / without shut off

3) Removal of tubes from pre-assembled pneumatic contacts is possible.

4) Replace Harting, ILME, Weidmuller, , Phoenix, TE

Specification

HMP-002  09140024501

Numbers of contacts

2
Colour Blue

Electrical performance according to

EN61984
Material Polycarbonate
Flammability according to (UL94) V0
Working temperature -40℃~80℃
Mechanical working life - mating cycles ≥500
Contacts
Material delri acetal
Colour black
Tube termination - ID 6.00mm or 1/4''
Working Pressure 8 Bar / 116 PSI
Sealing material Buna-N
Shut off valve Polypropylen



HMP-003 09140034501
Numbers of contacts 3
Colour Blue
Electrical performance according to EN61984
Material Polycarbonate
Flammability according to (UL94) V0
Working temperature -40℃~80℃
Mechanical working life - mating cycles ≥500
Contacts
Material delri acetal
Colour black
Tube termination - ID 1.6mm or 1/16''
  3mm
  4mm or 1/8''
Working Pressure 8 Bar / 116 PSI
Sealing material Buna-N
Shut off valve Polypropylen


Certificate: CE, RoHS, CQC, CCC


Experiences:  7 years experiences specialied in heavy duty connector



Quality assurance:  ISO9001:2008



Main Material: SABIC LEXAN 3414ECR with excellent electrical functioning.


Production line:  Injection, Die casting, Punching, CNC Lathe Machining, Surface Treatment, Laser printing,  Assembly, Packing finished at our workshop.


Advanced Test Facility: temperature measuring device, voltage/insulation resistance tester, Silver plating density test machine, flame retardant machine, Salt spray test machine and mechanical strength test machine.


Output: reach about 100,000 pieces each month.


Quality Warranty: 100% QC checked before selling and 12 Month warranty period.


Competitive price: according to customer’s requirement and order qty.



Family Range: Hundreds of insert model and housing model for your choice.



Fast delivery: Large stock with fast response and fast delivery.
