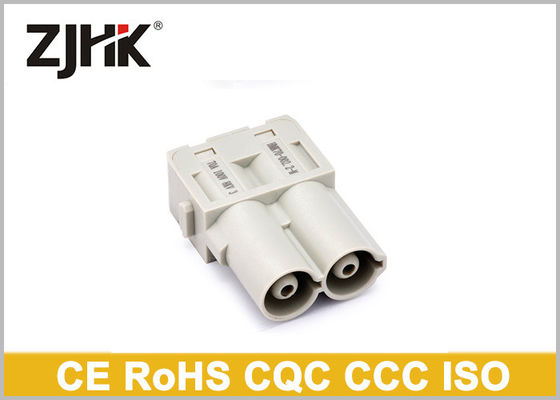

HMK70 - 002 HM Modular Industrial Electrical Connectors 09140022646

HMK70 - 002 HM Modular Industrial Electrical Connectors 09140022646

    • HMK70 - 002 HM Modular Industrial Electrical Connectors 09140022646
    • HMK70 - 002 HM Modular Industrial Electrical Connectors 09140022646
  • HMK70 - 002 HM Modular Industrial Electrical Connectors 09140022646

    Product Details:

    Place of Origin: China
    Brand Name: ZJHK
    Certification: CE, SGS, CQC, RoHS
    Model Number: HMK70-002.1-M / HMK70-002.1-F

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotible
    Packaging Details: Standard Export Cartons
    Delivery Time: 5 Days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100,000pcs per month
    Contact Now
    Detailed Product Description
    Order Number: 09140022646 & 09140022741 Model Type:: Modular Connector HM Series
    Material: Polycarbonate Sabic 3412 ECR Contact Type: Axial Screw
    Current: 70A Voltage: 1000V
    OEM: Provided No Of Contact: 2
    High Light:

    heavy duty dc connectors

    ,

    heavy duty power connector



    HMK70-002 HM Modular 2 Pin Heavy Duty Screw Connector 09140022646

    Description
    Heavy duty connectors are specifically designed for applications in extreme and rough environments. Their modular design makes the distribution of power, signals, pneumatic and data simple and flexible.The connector housings are made of die-cast aluminium and offer excellent protection against dirt, moisture and mechanical stress. The seals and locking levers on connector housing offer a strong protection against outdoor influences such as mechanical shocks, humidity, dust, water or oils, etc.


    Specification

    HMK70-002

    Numbers of contacts

    2

    Electrical performance according to

    EN61984
    Rated current 70A
    Rated voltage  1000V
    Rated impulse voltage 8KV
    Pollution degree 3
    Rated voltage according to UL 600V
    Insulation resistance ≥1010Ω
    Material Polycarbonate
    Flammability according to (UL94) V0
    Working temperature -40℃±125℃
    Mechanical working life - mating cycles ≥500
    Contacts
    Material Copper alloy
    Surface Silver Plated
    Contact resistance 0.5mΩ
    Axial screw terminal
    Wire gauge 6-22mm
    AWG 8-4
    Hexagonal Driver SW2.5
    Stripping length
    mm2 6     10     16     22
    mm 11+1 11+1 11+1 12.5+1
    Tightening Torque
    mm2 6   10   16   22
    Nm 2    3     4    5
    HMK70-002.1-M / HMK70-002.1-F 6~16mm2
    HMK70-002.2-M / HMK70-002.2-F 14~22mm2



    Features
    1) CE, RoHS, CQC, CCC certified
    2) 7 years experiences specialied in heavy duty connector
    3) Quality assurance in accordance with ISO9001:2008
    4) Full production line from Injection, Die casting, Punching, CNC Lathe Machining, Surface Treatment to Assembly, Packing finished at our workshop
    5) Advanced Test Facility and Labs, including temperature measuring device, voltage/insulation resistance tester, Silver plating density test machine, flame retardant machine, Salt spray test machine and mechanical strength test machine.
    6) Output reach about 100,000 pieces each month and 10 assembly lines.
    7) 100% QC checked before selling.
    8) Flexible quoting with most competitive price according to customer’s requirement



    Packing

    1.Normal Package: Inner Bag + Inner Box + Carton.

    2.Specific packaging can be made to order.



    Lead time

    We have a lot of stock and if it is not big quantity, we can send the goods immediately after recieving payment. For big order, the lead time will depends on the quantity and normally will take 7~15 days



    Shipping Term

    If small quantity, usually send by courier (DHL,FEDEX,TNT and so on). For big quantity, we advise to ship by air or by sea. By sea will take longer time (15~40 days upon destination port), but very cheaper fees. We are near NINGBO and SHANGHAI port.



    Our service

    (1) Free samples to test the quality.

    (2) Competitive price.

    (3) Pack according to customer's requirement.

    (4) Customized logo or design.

    (5) Good quality

    (6) Fast delivery time.

    (7) Plenty of stock



    Contact us

    1) By email. Any inquiry will be answered within 24 hours

    2) Call us by 0086-18067786591 or 0086-577-61676777

    3) Fax us by 0086-577-61676778

    4) Visit us at Liushi Town, the capital of China Electrical Industry !
