Polycarbonate 10 Pin Heavy Duty Connector Cage Clamp Termination

Product Details:

Place of Origin:	China
Brand Name:	ZJHK
Certification:	CE, RoHS, SGS, CQC,
Model Number:	HE-010-MS/FS

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Standard Export Cartons
Delivery Time:	7 Days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100,000 pcs per month

Contact Now

Detailed Product Description

Order Number:	09330102616/09330102716	Model Type::	HE Series
Material:	Polycarbonate Sabic 3412 ECR	Wire Connection:	Cage-clamp Termination
Housing:	H10B Series	Nos Of Contact:	10+PE
High Light:	PolycarbonateHeavy Duty Connector , Cage Clamp Heavy Duty Connector , 09330102716 Heavy Duty Connector

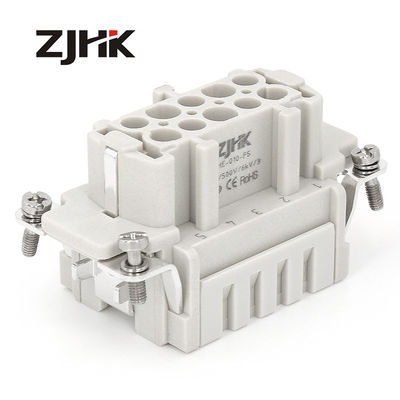

10 PIn heavy duty cage clamp inserts

HE-010 inserts

Inserts, Cage-clamp termination, Male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.14 ... 2.5mm², Copper alloy, Silver plated

Specifications

HAOKE Part Number	09330102616&09330102716
Quantity Available	500 Can ship immediately
Description	INSERT MALE 10POS+1GND PUSH IN
Manufacturer Standard Lead Time	WITHIN 10 DAYS AFTER PAYMENT
FACTORY	ZHEJIANG HAOKE
Series	HE S
Connector Type	Inserts
Gender	Male & Female
Number of Positions	10+Ground
Size	10B
Termination Style	Push in
Voltage Rating	600V
Current Rating (Amps)	16A
Operating Temperature	-40°C ~ 125°C
Contact Finish	Silver

Polycarbonate 10 Pin Heavy Duty Connector Cage Clamp Termination 0

Polycarbonate 10 Pin Heavy Duty Connector Cage Clamp Termination 1

Our Features :
1. All spart parts are manufactured at our workshop
2. Polycarbonate supplied by SABIC
3. All contacts are made by H62 brass with silver plating 3μm thickness.
4. Salt Spray Test withstand more than 72 hours.
5. Plugging cycle withstand more than 500 times.
6. Strict Quality check , each screw connection was checked to make sure the screw can fix the wires well and every mounting holes are prepared well.
7. Compatible with Harting, TE / Sibas, ILME, Phoenix, Weidmuller, Molex connectors.

Polycarbonate 10 Pin Heavy Duty Connector Cage Clamp Termination 2

Instruction:

. NOT for Current Interruption
2). Don't couple or decouple the connectors under electrical load.
3). Don't power up the connectors in the un-mated conditons even if the connectors goes with a protective cover.
4). User should provide protection against electric shock.

Raw Material - SABIC LEXAN 3412ECR Polycarboneate with 20% glass fibre

Competitve Price:

with the help of advanced machines and assembly lines,

we can redue our cost greatly and offer an competitive price to our customer and help them enter market.

FQA:

1.Q:Are you manufactory or trade company?
A:We are the manufactory in Wenzhou,Zhejiang Province,China.

2.Q:Can we have our logo or company name to be printed on your products or the package?
A:Sure.OEM is welcomed.Your Logo can be puted on our products.And we can make package according to your design.

3.Q:What is usual payment term for orders?
A:We accept terms of T/T in advance,Western Union.It can be cccording to buyer requirement

4.Can we use your HDC Male part match Harting Female part ? Or Female part match Male part.

A:Of curse we can match harting perfectly.

5.what’s your advantage compare with Harting,ILME,TE(SIBAS)?

A:Our HDC can replace Harting,ILME,TE(SIBAS)perfectly,most of clients who use those brand before,After the test ,they choose us.Also our price is lower than Harting 40-50%.

6.Is your company fully automated?

A:Yes,Most of our production is fully automated.
