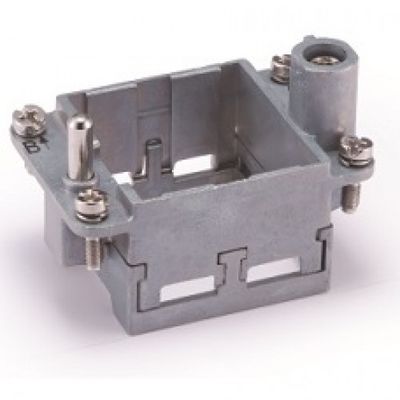

HM Combined 6b 10b 16b 24b Connector Frame Module

HM Combined 6b 10b 16b 24b Connector Frame Module

  • HM Combined 6b 10b 16b 24b Connector Frame Module
  • HM Combined 6b 10b 16b 24b Connector Frame Module
  • HM Combined 6b 10b 16b 24b Connector Frame Module
  • HM Combined 6b 10b 16b 24b Connector Frame Module
HM Combined 6b 10b 16b 24b Connector Frame Module
Product Details:
Place of Origin: China
Brand Name: ZJHK
Certification: CE, SGS, CQC, RoHS
Model Number: HM-FRAME
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Cartons
Delivery Time: 5 Days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Order Number: / Model Type:: FRAME
Material: Zinc Die-cast Wire Connection: /
Housing: 6B,10B,16B,24B OEM: Approve
Nos Of Contact: / Size: 6B,10B,16B,24B
High Light:

Combined 24b Connector Frame Module

,

Combined 6b Connector Frame Module

,

HM Module Combined 10B Frame



HM Module Combined 6B 10B 16B 24B Frame



Product Details

ZJHK Modular Frames

Grounding system according to VDE

Die cast zinc construction

Hinged frame (except item type 1 – one piece)

A-B, a-b, A-C, a-c, A-D, a-d, A-F, and a-f orientation available depending on 2, 3, 4, or 6 insert ’module’ requirement

Mating cycles ≥500

For use in standard hoods and housings,also,ZJHK Hinged frame can match with Harting,ILME,TE.











Quick Details

1. Standard:  DIN EN 61984

2. Flammability: UL94 V0

3. Protection Degree : IP65

4. Plugging Cycle: ≥500

5. Salt Spray Test: 72 hours

6. Working Temperature: -40℃±125℃





Specification

Gender

Male & Female

Accessory Type

Frame

Range

Modular frames

Series

HM-Modular

For Use With

Standard ZJHK Hoods and Housings

Description of the accessory

A ... B,A ... C,A ... D,A ... F

a...b,a...c,a...d,a...f

Termination Type

for 2,3,4 or 6 modules

Size

6B,10B,16B,24B

Limiting temperature

-40 ... +125 °C

Mating cycles

≥ 500

Material

Zinc die-cast

RoHS

compliant with exemption

Packaging size

1





ZJHK HM® Modular

The modular system (ZJHK - HM) enables signal, power, pneumatic, coax and ethernet connections in one connector in individual customized arrangement.

HM Combined 6b 10b 16b 24b Connector Frame Module 0





These in turn may be fitted to standard ZJHK® housings. The system allows a variety of insert configurations within the one connector assembly. The ZJHK-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection.



ZJHK offers appropriate crimping tools for different levels of automation for all connectors.



HM Combined 6b 10b 16b 24b Connector Frame Module 1



Module installation and disassembly diagram

HM Combined 6b 10b 16b 24b Connector Frame Module 2







Heavy duty connector makes an effective electrical and mechnical connection for various industrial application. Compared to traditional industrial connectors, the heavy duty connectors provide a IP65 protection against harsh environment and save 30~50% labour cost in installation and mantaince.



Therefore, it is widely used in mechinery, electrical control, railway transportation, automation, robotics, wind energy and engery distribution.







HM Combined 6b 10b 16b 24b Connector Frame Module 3
