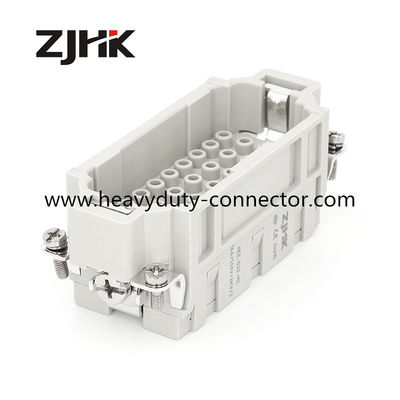

32 Pin High Density Connector Match Harting Han Connector Rectangular

32 Pin High Density Connector Match Harting Han Connector Rectangular

  • 32 Pin High Density Connector Match Harting Han Connector Rectangular
  • 32 Pin High Density Connector Match Harting Han Connector Rectangular
  • 32 Pin High Density Connector Match Harting Han Connector Rectangular
32 Pin High Density Connector Match Harting Han Connector Rectangular
Product Details:
Place of Origin: China
Brand Name: ZJHK
Certification: CE, RoHS, SGS, CQC,
Model Number: HEE-032-MC
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Standard Export Cartons
Delivery Time: 7 Days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Order Num09320103101ber: 09320323001 Model Type:: Standard Connector HEE Series
Material: Polycarbonate Sabic 3412 ECR Wire Connection: CRIMP
Housing: H16B Series Nos Of Contact: 32 PIN
High Light:

32 Pin High Density Connector

,

Match Harting Han Connector

,

Rectangular Harting Han Connector

HEE 32 PIN CRIMP HEAVY DUTY CONNECTOR INSERT



With the introduction and development of Industry 4.0.



The demand for electrical connection in the machinery industry is getting higher and higher, which requires our products to develop in the direction of stabilization, convenience and customization.



Haoke heavy duty connector can fully meet your use in the machinery industry.



Technical data


  •
Identification Date Unit
Series HEE high density series
Version Part No. 09320323001
Termination method Crimp TYPE
Number of contacts 32
Length 64 mm
Width 34.5 mm
Height 34 mm
Rate voltage 500 V
Rate current 16 Amp
Pollution degree Three
Rate impulse voltage 6 KV
Insulation resistance 1010 Ω
Mechanical woking life more than 500 Times
Contact resistance ≤1
Min.connection capacity for solid wire 0.14/26 m㎡/AWG
Max.connection capacity for solid wire 4/12 m㎡/AWG
Min.connection capacity for strand wire 0.14/26 m㎡/AWG
Max.connection capacity for strand wire 4/12 m㎡/AWG
Material (insert) Polycarbonate
Metal meterial Copper alloy
Operating temperature -40℃~+125℃
Stripping length 7.5 m


Deatils photo:

32 Pin High Density Connector Match Harting Han Connector Rectangular 0

Design details :

32 Pin High Density Connector Match Harting Han Connector Rectangular 1


Notice:

Please order crimp contacts separately.






Click here to check  more series information:

32 Pin High Density Connector Match Harting Han Connector Rectangular 2








32 Pin High Density Connector Match Harting Han Connector Rectangular 3







32 Pin High Density Connector Match Harting Han Connector Rectangular 4





Click here to back to  Hompage check more series . → 32 Pin High Density Connector Match Harting Han Connector Rectangular 5
