HEE 010 PIN Industrial Air Conditioner Wind Power Paddle Pulley CONNECTOR Heavy Duty Connector
  • name
  • name
  • name

HEE 010 PIN Industrial Air Conditioner Wind Power Paddle Pulley CONNECTOR Heavy Duty Connector

MOQ: 5
Price: Negotiable
Standard Packaging: Standard Export Cartons
Delivery Period: 7 Days
Payment Method: L/C, T/T, Western Union, Paypal
Supply Capacity: 100,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
CE, RoHS, SGS, CQC,
Model Number
HEE-010-MC
Order Num09320103101ber:
09320103001
Model Type::
Standard Connector HEE Series
Material:
Polycarbonate Sabic 3412 ECR
Wire Connection:
CRIMP
Housing:
H6B Series
Nos Of Contact:
10
Highlight:

HEE 010 PIN Heavy Duty Connector

,

Industrial Heavy Duty Connector

Product Description

HEE 10 Pos. Insert Male Crimp

replace harting Han EE 10Pin connector


Wind power paddle pulley connector

Auto Industrial 4.0 solution


Inserts, Crimp termination, Male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 6 B, Contacts: 10, Conductor cross-section: 0.14 ... 4mm²




Technical data
 Identification
 Series
 HEE series
 Part No.
  09320103001
 Version
 Termination method
 Crimp termination
 Gender
 Male
 Size
 6B
 With wire protection
 Yes
 PE contact
 Yes
 Material (contacts)
 Copper alloy
 Contact identification
 1...10
 Technical characteristics

 Conductor cross-section
 0.14 ... 4 mm²
 Conductor cross-section
 AWG 26 ... AWG 12
 Rated current
 16A
 Rated voltage
 500 V
 Rated impulse voltage
 6 kV
 Insulation resistance
 ≥ 1010 Ω
 Contact resistance
 ≤ 1 mΩ
 Limiting temperature
 -40 ... +125 °C
 Mating cycles
 ≥ 500
 Material properties

 Material (insert)
 Polycarbonate
 Colour (insert)
 RAL 7032 (pebble grey)
 Material (contacts)
 Copper alloy
 Surface (contacts)
 Silver plated & Golde plated
 RoHS
 compliant with exemption
 Details  Please order crimp contacts   separately.
 Country of origin  China






Deatils photo:

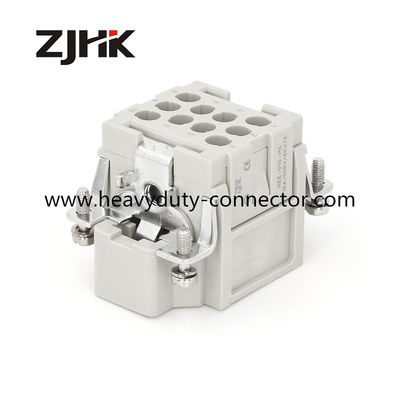

Male part

HEE 010 PIN Industrial Air Conditioner Wind Power Paddle Pulley CONNECTOR Heavy Duty Connector 0


click here to check Female part information:
HEE 010 PIN Industrial Air Conditioner Wind Power Paddle Pulley CONNECTOR Heavy Duty Connector 1


HEE 010 PIN Industrial Air Conditioner Wind Power Paddle Pulley CONNECTOR Heavy Duty Connector 2

HEE 010 PIN Industrial Air Conditioner Wind Power Paddle Pulley CONNECTOR Heavy Duty Connector 3



Click here to back to  Hompage check more series .

HEE 010 PIN Industrial Air Conditioner Wind Power Paddle Pulley CONNECTOR Heavy Duty Connector 4
