HEE 010 PIN Wind Power Paddle Pulley CONNECTOR Replace Harting Connector

HEE 010 PIN Wind Power Paddle Pulley CONNECTOR Replace Harting Connector

  • HEE 010 PIN Wind Power Paddle Pulley CONNECTOR Replace Harting Connector
  • HEE 010 PIN Wind Power Paddle Pulley CONNECTOR Replace Harting Connector
  • HEE 010 PIN Wind Power Paddle Pulley CONNECTOR Replace Harting Connector
HEE 010 PIN Wind Power Paddle Pulley CONNECTOR Replace Harting Connector
Product Details:
Place of Origin: China
Brand Name: ZJHK
Certification: CE, RoHS, SGS, CQC,
Model Number: HEE-010-F
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Standard Export Cartons
Delivery Time: 7 Days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Order Num09320103101ber: 09320103101 Model Type:: Standard Connector HEE Series
Material: Polycarbonate Sabic 3412 ECR Wire Connection: CRIMP
Housing: H6B Series Nos Of Contact: 10
High Light:

09320103101 Connector

,

Wind Power Paddle Pulley Connector

ZJHK HEE 10 Pos. Insert Female Crimp


Inserts, Crimp termination, Female, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 6 B, Contacts: 10, Conductor cross-section: 0.14 ... 4mm²

Wind power paddle pulley Auto Industrial 4.0 solution





Technical data
 Identification
 Series
 HEE
 Part No.
 09320103101
 Version
 Termination method
 Screw termination
 Gender
 Female
 Size
 6B
 With wire protection
 Yes
 PE contact
 Yes
 Material (contacts)
 Copper alloy
 Contact identification
 1...10
 Technical characteristics

 Conductor cross-section
 0.14 ... 4 mm²
 Conductor cross-section
 AWG 26 ... AWG 12
 Rated current
 16A
 Rated voltage
 500 V
 Rated impulse voltage
 6 kV
 Rated voltage acc. to UL
 600 V
 Insulation resistance
 ≥ 1010 Ω
 Contact resistance
 ≤ 1 mΩ
 Limiting temperature
 -40 ... +125 °C
 Mating cycles
 ≥ 500
 Material properties

 Material (insert)
 Polycarbonate
 Colour (insert)
 RAL 7032 (pebble grey)
 Material (contacts)
 Copper alloy
 Surface (contacts)
 Silver plated
 RoHS
 compliant with exemption
 Details  Please order crimp contacts   separately.
 Country of origin  China






Deatils photo:

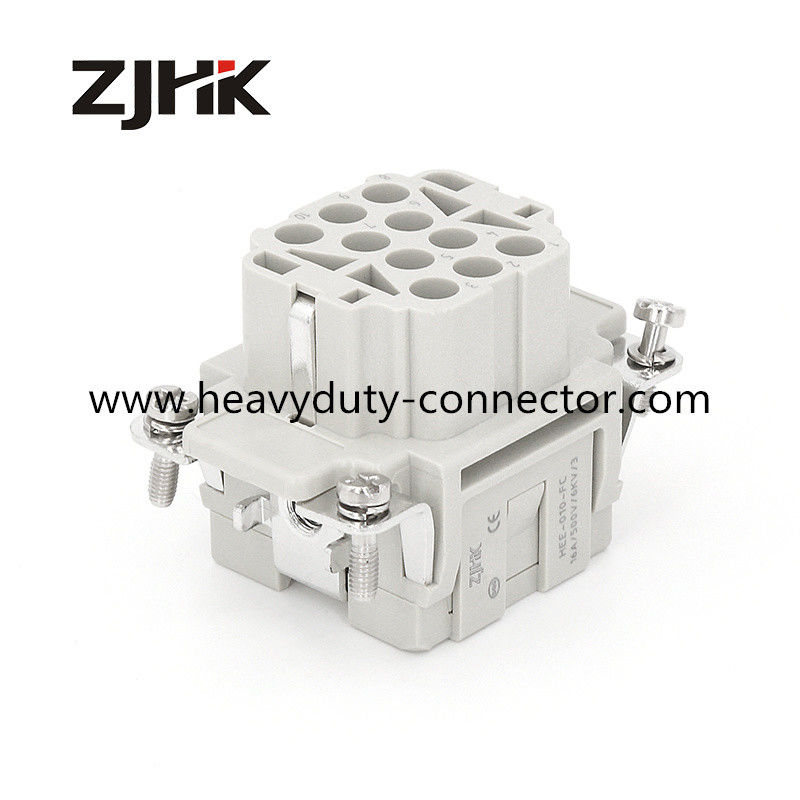

Female part
 HEE 010 PIN Wind Power Paddle Pulley CONNECTOR Replace Harting Connector 0

Male part

 HEE 010 PIN Wind Power Paddle Pulley CONNECTOR Replace Harting Connector 1

HEE 010 PIN Wind Power Paddle Pulley CONNECTOR Replace Harting Connector 2

HEE 010 PIN Wind Power Paddle Pulley CONNECTOR Replace Harting Connector 3

HEE 010 PIN Wind Power Paddle Pulley CONNECTOR Replace Harting Connector 4
