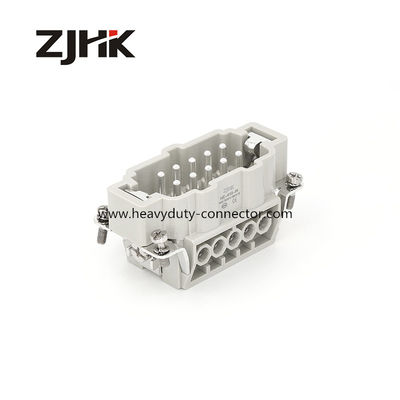

E Series 10 Pin Truck Heavy Duty Connector Screw Insert 500v 16a White Color

E Series 10 Pin Truck Heavy Duty Connector Screw Insert 500v 16a White Color

  • E Series 10 Pin Truck Heavy Duty Connector Screw Insert 500v 16a White Color
  • E Series 10 Pin Truck Heavy Duty Connector Screw Insert 500v 16a White Color
  • E Series 10 Pin Truck Heavy Duty Connector Screw Insert 500v 16a White Color
  • E Series 10 Pin Truck Heavy Duty Connector Screw Insert 500v 16a White Color
E Series 10 Pin Truck Heavy Duty Connector Screw Insert 500v 16a White Color
Product Details:
Place of Origin: China
Brand Name: ZJHK
Certification: CE, RoHS, SGS, CQC,
Model Number: HE-010-M
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Standard Export Cartons
Delivery Time: 7 Days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Order Number: 09330102601 Model Type:: Standard Connector HE Series
Material: Polycarbonate Sabic 3412 ECR Wire Connection: Screw
Housing: H10B Series Nos Of Contact: 10
Highlight:

10 Pin Truck Heavy Duty Connector

,

E Series heavy duty power connectors

,

500v Heavy Duty Connector





Inserts, Screw termination, Male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.75 ... 2.5mm², Copper alloy, Silver plated

Fit   ABB KUKA  FANUC Robots Industrial solution




Part number: 09330102601
Technical data

Version
Termination method Screw termination
Gender Male
Size 10B
With wire protection Yes
Number of contacts 10
PE contact Yes
Technical characteristics
Conductor cross-section  0.75 ... 2.5 mm²
Conductor cross-section  AWG 18 ... AWG 14
Rated current  16A
Rated voltage  500 V
Rated impulse voltage  6 kV
Pollution degree  3
Insulation resistance  > 1010 Ω
Contact resistance  ≤ 1 mΩ
Limiting temperature  -40 ... +125 °C
Stripping length  7.5 mm
Tightening torque  0.5 Nm
Mating cycles  ≥ 500
Material properties
Material (insert)  Polycarbonate
Colour (insert)  RAL 7032 (pebble grey)
Material (contacts)  Copper alloy
Surface (contacts)  Silver plated
Commercial data
Packaging size  1
Net weight  66g
Country of origin  China
European   85366990
Chinese customs tariff number

 8536901900
eCl@ss  27440205 Contact insert for industrial connectors


E Series 10 Pin Truck Heavy Duty Connector Screw Insert 500v 16a White Color 0
Design drawing:

E Series 10 Pin Truck Heavy Duty Connector Screw Insert 500v 16a White Color 1

Match Han E 10 Pos. F Insert Screw

Please check our design drowing with Harting design drowing

E Series 10 Pin Truck Heavy Duty Connector Screw Insert 500v 16a White Color 2
E Series 10 Pin Truck Heavy Duty Connector Screw Insert 500v 16a White Color 3

E Series 10 Pin Truck Heavy Duty Connector Screw Insert 500v 16a White Color 4
                   E Series 10 Pin Truck Heavy Duty Connector Screw Insert 500v 16a White Color 5
