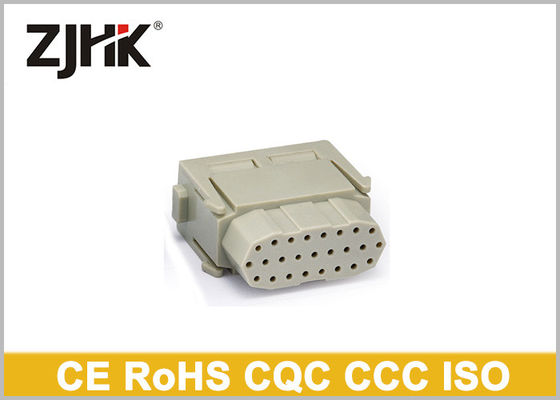

09140253001 25 Pole Heavy Duty Electrical Connector With 4 AMP Crimp Terminal

09140253001 25 Pole Heavy Duty Electrical Connector With 4 AMP Crimp Terminal

  • 09140253001 25 Pole Heavy Duty Electrical Connector With 4 AMP Crimp Terminal
  • 09140253001 25 Pole Heavy Duty Electrical Connector With 4 AMP Crimp Terminal
09140253001 25 Pole Heavy Duty Electrical Connector With 4 AMP Crimp Terminal
Product Details:
Place of Origin: China
Brand Name: ZJHK
Certification: CE, SGS, CQC, RoHS
Model Number: HMDS-025-MC / HMDS-025-FC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotible
Packaging Details: Standard Export Cartons
Delivery Time: 5 Days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Order Number: 09140253001 / 09140253101 Model Type:: Modular Connector HM Series
Material: Polycarbonate Sabic 3412 ECR Contact Type: Crimp Terminal
Current: 4A Voltage: 50V
OEM: Provided No Of Contact: 25
High Light:

heavy duty dc connectors

,

heavy duty power connector

09140253001 25 Pole Han High Density Module Connector 5A Crimp Terminal


Specification

HMDS-025 INSERTS

Numbers of contacts

25

Electrical performance according to

EN61 984
Rated current 4A
Rated voltage  50V
Rated impulse voltage 0.8KV
Pollution degree 3
Insulation resistance ≥1010Ω
Material Polycarbonate
Flammability according to (UL94) V0
Working temperature -40℃±125℃
Mechanical working life - mating cycles ≥500
Contacts
Material Copper alloy
Surface Silver Plated
Contact resistance 3mΩ
Terminal Crimp
Wire gauge 0.09-0.52mm2
AWG 28-20



Features

1. Certified by CE, RoHS, CQC, CCC

2. Conforms to ISO9001:2008 Quality System

3. Die casting, Punching, threading all by CNC machines at own workshop

4. 100% QC checked before selling

5. All mold are designed at our workshop

6. 7 years experiences specialied in heavy duty connector

7. RoHS compliance, friendly to Environment.

8. OEM is available



WHY US?

the quality we provide----outstanding quality assurance.

the service we provide----we take care of every order.

Depending on ZJHK's powerful R & D team, efficient production management, wonderful service system and scientific market strategy, we are trying our best to build up the first class brand with the most competitive price and quality.



Main Production Equipments:
Injection Machine, Dieing machine(High-speed Precision Punching Machine), Auto Lathe, Bench Lathe, Die casting Machine,Drilling machine,CNC Machine, etc



Main Inspection Equipment:

Silver plating density test machine, Flame Retardant Machine, Salt Spray Test machine and Plugging (Mechanical strength) test machine.



Raw Material:
PC from Sabic LEXAN 3412 ECR, Die cast Aluminium Alloy ADC12, Stainless Steel 304, Copper Alloy H62, ect



Surface Treatment:
Powder Coated, Silver plating, Zinc-plating,



Strict quality control:
With ISO9001:2008 quality management system and advanced quality testing devices,we strictly control the quality although the producing process. High level quality has gained us more reliability from our customers


Best prices
Wtih high producing efficiency and strict management, we can offer the best prices for our all series of connectors including HA, HE, HD, HDD, HEE, HSB, HM, HK, HQ and H3A, H10A, H16A, H32A, H6B, H10B, H16B, H24B, H32B, H48B. Our plenteous material stock and prompt process can meet your urgen requirements and we can arrange the urgen order any time


Quick delivery:
We keep close relationship with Fedex, DHL, UPS, TNT and other express companies for quick delivey.

For bulk order, we can send to Ningbo, Shanghai, Shenzhen, Tianjin, Beijing seaport or airport quickly.
