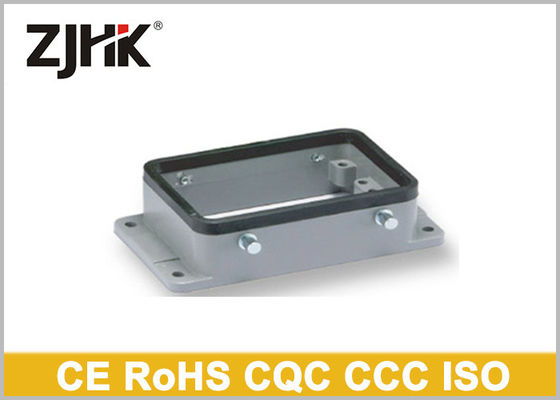

Rectangular Connector Insert H32A-BK-4B , Male Female Rectangular Hood 09200320202

Rectangular Connector Insert H32A-BK-4B , Male Female Rectangular Hood 09200320202

    • Rectangular Connector Insert H32A-BK-4B , Male Female Rectangular Hood 09200320202
    • Rectangular Connector Insert H32A-BK-4B , Male Female Rectangular Hood 09200320202
  • Rectangular Connector Insert H32A-BK-4B , Male Female Rectangular Hood 09200320202

    Product Details:

    Place of Origin: China
    Brand Name: ZJHK
    Certification: CE, RoHS, SGS, CQC
    Model Number: H32A-BK-4B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Standard Export Cartons
    Delivery Time: 5 Days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Order Number: 09200320202 Model:: H32A
    Material: Die Cast Aluminium Colour: Grey
    OEM: Provided Protection: IP65
    Type: Bulkhead Mounting With 4 Bolt
    High Light:

    connector hood

    ,

    rectangular hood

    H32A-BK-4B for Rectangular Insert, Male Female Plug Socket 09200320202



    Description

    Strong Design IP65 Anti-Dust, Liquid and Mechanical strain
    Easy to install Screw mounting on panels. No need of special tools
    Long working life Salt spray withstand more than 72 hours
    Low maintenance easy to reassembly and upgrade
    Smooth surface finishing Anti corrosion powder coated
    Light weight Removable and space saving





    Characteristics



    1. Type: Bulkhead Mouting

    3. Locking Type: Double Lever

    4. Lever material: SS304, anti-corrosion and friction

    5. Max Temperature: 125°C

    6. Min Temperature: -40°C

    7. Retardant UL94: V0

    8. Material : Die-Cast Aluminum
    9. Surface : Powder Coated

    10. Sealing Material: NBR

    10. Degree of Protection acc. to EN 60 529: IP65

    11. Colour: RAL 7037 Grey

    12. Metal and plastic protection covers are optional



    Features

    1. Certified by CE, RoHS, CQC, CCC

    2. Conforms to ISO9001:2008 Quality System

    3. Die casting, Punching, threading all by CNC machines at own workshop

    4. 100% QC checked before selling

    5. All mold are designed at our workshop

    6. 7 years experiences specialied in heavy duty connector

    7. RoHS compliance, friendly to Environment.

    8. OEM is available



    WHY US?

    the quality we provide----outstanding quality assurance.

    the service we provide----we take care of every order.

    Depending on ZJHK's powerful R & D team, efficient production management, wonderful service system and scientific market strategy, we are trying our best to build up the first class brand with the most competitive price and quality.



    Main Production Equipments:
    Injection Machine, Dieing machine(High-speed Precision Punching Machine), Auto Lathe, Bench Lathe, Die casting Machine,Drilling machine,CNC Machine, etc



    Main Inspection Equipment:

    Silver plating density test machine, Flame Retardant Machine, Salt Spray Test machine and Plugging (Mechanical strength) test machine.



    Raw Material:
    PC from Sabic LEXAN 3412 ECR, Die cast Aluminium Alloy ADC12, Stainless Steel 304, Copper Alloy H62, ect



    Surface Treatment:
    Powder Coated, Silver plating, Zinc-plating,



    Strict quality control:
    With ISO9001:2008 quality management system and advanced quality testing devices,we strictly control the quality although the producing process. High level quality has gained us more reliability from our customers


    Best prices
    Wtih high producing efficiency and strict management, we can offer the best prices for our all series of connectors including HA, HE, HD, HDD, HEE, HSB, HM, HK, HQ and H3A, H10A, H16A, H32A, H6B, H10B, H16B, H24B, H32B, H48B. Our plenteous material stock and prompt process can meet your urgen requirements and we can arrange the urgen order any time


    Quick delivery:
    We keep close relationship with Fedex, DHL, UPS, TNT and other express companies for quick delivey.

    For bulk order, we can send to Ningbo, Shanghai, Shenzhen, Tianjin, Beijing seaport or airport quickly.
