Side Entry Heavy Duty 4 Pin Connector / Rectangular Electrical Connectors 09200030620

Side Entry Heavy Duty 4 Pin Connector / Rectangular Electrical Connectors 09200030620

    • Side Entry Heavy Duty 4 Pin Connector / Rectangular Electrical Connectors 09200030620
    • Side Entry Heavy Duty 4 Pin Connector / Rectangular Electrical Connectors 09200030620
  • Side Entry Heavy Duty 4 Pin Connector / Rectangular Electrical Connectors 09200030620

    Product Details:

    Place of Origin: China
    Brand Name: ZJHK
    Certification: CE, RoHS, SGS, CQC
    Model Number: H3A.P-SE-2B-PG11

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Standard Export Cartons
    Delivery Time: 5 Days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Order Number: 09200030620 Model:: H3A
    Material: PC Colour: Light Grey
    OEM: Provided Protection: IP65
    Type: Side Entry- Angle
    High Light:

    industrial rectangular connectors

    ,

    8 pin rectangular connector

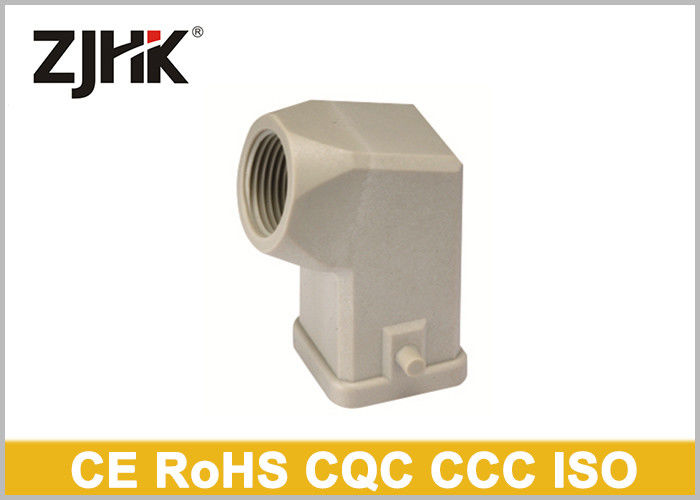

    H3A.P-SE-2B-PG11 Plastic Industrial Side Entry Hood 09200030620



    Specification

    1. With Cable gland: Yes

    2. Material : PC
    3. Locking Element : PC
    4. Operating Temperature Range Max: 125℃

    5. Operating Temperature Range Min: 40℃

    6. Inflammability class acc. to UL94: V0
    7. Degree of Protection: IP65

    8. Colour: Grey

    9. Model: H3A

    10. Locking Type: Single Lever

    11. Hood: Side Entry

    12. Thread: PG11 (M20 is optional)



    Features



    1. Strong design: IP65 Anti-Dust, Liquid and Mechanical strain

    2. Easy to install: Screw mounting on panels. No need of special tools

    3. Long working life: Salt spray testing more than 72 hours

    4. Low maintenance: easy to reassembly and upgrade

    5. Smooth surface finishing: Anti corrosion and

    6. Light weight: Removable and space saving



    Application - Compatible with Harting Han 3A Series Hood and Housing



    Electrical Control Ring Network Cabinet, Motors, Switchgears
    Machinery Injection Machine, Blow Bottle Machine, Packing Machine, Printing Machine
    Automation Industrial Robot
    Power System Wind Generation
    Automotive Industrial Assembly line
    Others Escalator, Measurement and Control Technology, Railway Carriage



    About Us



    Specializing in heavy duty connector 7 years.

    Our canpany is one of the most professional manufacturers in the production of the heavy duty connector, including hundreds types of inserts and housings. We are CE, RoHs, CQC, CCC, ISO approved.

    Powerful factory

    50 experienced workshop workers to ensure the production of the finest quality, most of them are with 5 year in our factory, we has 10 producton and assembly lines, Output reach about 300,000 pieces each month.

    Customized service

    Specific sizes, logo & colors can be made to order. Since we have own molding centre and advanced machines, we are develop new designs every year. Please send us your details and we shall prepare individual quote upon receipt of your information.





    FAQ

    1 Where is your factory?

    Our factory is located in Xuezhai Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325604 China.

    2. Can I ask for samples?

    Yes, sample is ready for quality check. Just inform us your DHL account for freight.

    3. What's the warranty of your products?

    12 months and any defective items, we will replace immediately.

    4. What's the lead time?

    Depend on the quantity and model of the order, normally it takes around 5-7 days, exact lead time should be confirmed against the final order.

    5. How about the MOQ, Payment term, Delivery port, and shipping date?

    MOQ: No Limit - we pack indivisually for each part and have plenty stock for standard part.

    T/T: 30% deposit and 70% before delivery.

    L/C at sight is also acceptable

    Ningbo / Shanghai

    Small order delivered by DHL, TNT, Fedex, EMS will be better for you.



    Contact us

    1) By email to us. Any inquiry will be answered within 24 hours.

    2) Call us by 0086-18067786591 or 0086-577-61676777

    3) Fax us by 0086-577-61676778

    4) Visit us at Liushi Town, the capital of China Electrical Industry !
