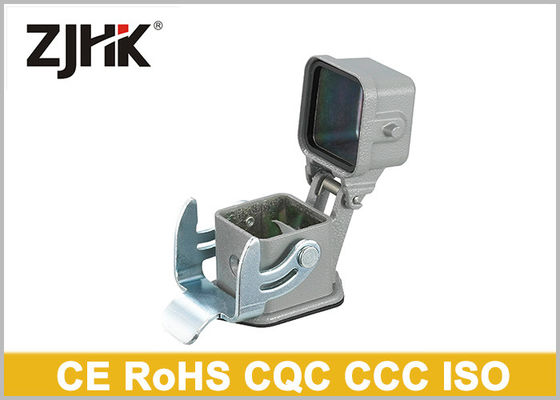

Bulkhead Mounting Housing Industrial Connector With Cover H3A-BK-1L-MCV H3A

Bulkhead Mounting Housing Industrial Connector With Cover H3A-BK-1L-MCV H3A

    • Bulkhead Mounting Housing Industrial Connector With Cover H3A-BK-1L-MCV H3A
    • Bulkhead Mounting Housing Industrial Connector With Cover H3A-BK-1L-MCV H3A
  • Bulkhead Mounting Housing Industrial Connector With Cover H3A-BK-1L-MCV H3A

    Product Details:

    Place of Origin: China
    Brand Name: ZJHK
    Certification: CE, RoHS, SGS, CQC
    Model Number: H3A-BK-1L-MCV

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Standard Export Cartons
    Delivery Time: 5 Days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Order Number: 09200030305 & 09200030306 Model:: H3A
    Material: Die Cast Aluminium Colour: Grey
    OEM: Provided Protection: IP65
    Type: Bulkhead Mount Housing With Metal Cover

    H3A-BK-1L-MCV H3A Bulkhead Mounting Housing Heavy Duty Connector with Cover



    Specification

    1. Corrosion Resistant: Yes

    2. Body Material : Die-Cast Aluminum

    3. Cover Material: Die-Cast Aluminum

    4. Surface : Powder Coated

    5. Locking Element : Zinc plated / Corrosion Resistant Stainless Steel

    6. Operating Temperature Range Max: 125℃

    7. Operating Temperature Range Min: 40℃

    8. Inflammability class acc. to UL94: V0

    9. Degree of Protection: IP65

    10. Colour: Grey

    11. Model: H3A

    12. Locking Type: Single Lever



    Porduct Family



    hood side entry with 2 bolts M20 thread H3A-SE-2B-M20 19200031640
    hood side entry with 2 bolts PG11 thread H3A-SE-2B-PG11 09200031640
    hood top entry with 2 bolts M20 thread H3A-TE-2B-M20 19200031440
    hood top entry with 2 bolts PG11 thread H3A-TE-2B-PG11 09200031440
    hood top entry with 2 bolts PG13.5 thread H3A-TE-2B-PG13.5 09200031441
    housing bulkhead mounted with 1 lever H3A-BK-1L 09200030301
    housing side entry bulkhead mounted with 1 lever H3A-BK-1L-SE 09200030801
    housing surface mounted with 1 lever M20 thread H3A-SF-1L-M20 19200031250
    housing surface mounted with 1 lever PG11 thread, bottom entry H3A-SF-1L-PG11 09200031250
    housing surface mounted with 1 lever PG13.5 thread, bottom entry H3A-SF-1L-PG13.5 09200031251
    housing cable to cable type with 1 lever M20 thread H3A-CCT-1L-M20 19200031750
    housing cable to cable type with 1 lever PG11 thread H3A-CCT-1L-PG11 09200031750
    housing cable to cable type with 1 lever PG13.5 thread H3A-CCT-1L-PG13.5 09200031751



    Application

    Heavy duty connectors are specifically designed for applications in extremely rough environments. Their modular design makes the distribution of power and signals simple. Our strongt housings of powder coated aluminum alloy can protect against mechanical stress and prevent aggression of jetting water and dirt. Compared to othre Industrial connector, the biggest advantage of our connector lies in its modularity and simple connectivity, which greatly simplifies the complex wiring applications and save the users a lot of time and money with low maintenance cost.
