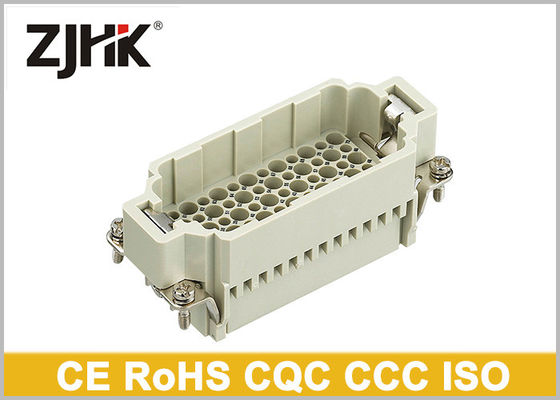

HDD 72pin 250V Heavy Duty Multi Pin Connector With Crimp Power Terminal 09160723001 for Sweeping Machine

HDD 72pin 250V Heavy Duty Multi Pin Connector With Crimp Power Terminal 09160723001 for Sweeping Machine

    • HDD 72pin  250V Heavy Duty Multi Pin Connector With Crimp Power Terminal 09160723001  for Sweeping Machine
    • HDD 72pin  250V Heavy Duty Multi Pin Connector With Crimp Power Terminal 09160723001  for Sweeping Machine
  • HDD 72pin  250V Heavy Duty Multi Pin Connector With Crimp Power Terminal 09160723001  for Sweeping Machine

    Product Details:

    Place of Origin: China
    Brand Name: ZJHK
    Certification: CE, SGS, CQC, RoHS
    Model Number: HDD-072-MC / HDD-072-FC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: negotible
    Packaging Details: Standard Export Cartons
    Delivery Time: 5 Days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Order No.: 09160723001 & 09160723101 Connector Type:: Ultra High Density Connector
    Inserts: Polycarbonate Sabic 3412 ECR Wire Connection: Crimp
    Housing Model: H16B Series Housing Material: Die Cast Aluminium Alloy
    Contacts No.: 72 + PE Current: 10A
    Voltage: 250V Package: Indivisual Packing In Box
    OEM: Provided

    09160723001 HDD-072 Multi Pin Heavy Duty Electrical Connector Crimp Power Terminal
    Heavy duty connector kits normally consist of a male insert, a female insert, crimp contacts, a hood, a bulkhead housing and a cable gland (freely provided).
    We offer a range of standard connector combination kit with metric or PG cable entry threads.

    With crimp connection, it is very easy to install and also the crimp pins can hold the wires firmly even under vibrating environment. So the maintenance cost can be reduced very much.
     HDD 72pin  250V Heavy Duty Multi Pin Connector With Crimp Power Terminal 09160723001  for Sweeping Machine
    Specification

    Contact Material:Cu alloy (brass)

    Contact Plating:Silver

    Contact Resistance:< 3 m ohms

    Contacts:72+PE

    Insert Material:PC

    Insulation Resistance:>1010ohms

    Lifetime:>500 mating cycles

    Operating Temperature:-40°C to +125°C

    Protection:IP65

    Rated Current:10A

    Rated Impulse Voltage:4000V

    Rated Voltage:250V

    Size: HDD Ultra High Density

    Termination:Crimp

    Type:Male / Female

    Wire Gauge:0.14 - 2.5mm²

    Voltage Rating UL/CSA:600VAC



    Application:
    with the advantage of easy installation, quick and removable connection, heavy Duty connector are widely used at hot run system, crane, lift, wind generation, robot, train connection, injection machine, manipulator, ring main unit, textile machinery, lather machine, bottle blowing mahine, packing machine, ceramic machine, glass machinery, marine machinery, Metallurgical Machinery, Hotmelt Machine, moulding machine.

    Optional Hood and HousingType

    Side Entry H16B-SE-2B / 4B-M25/M32/PG21
    Side Entry High Contruction H16B-SEH-2B / 4B-M32/M40/PG21/PG29
    Top Entry H16B-TE-2B / 4B-M25/M32/PG21
    Tide Entry High Contruction H16B-TEH-2B / 4B-M32/M40/PG21/PG29
    Bulkhead mounting H16B-BK-1L, H16B-BK-2L
    Bulkhead mounting with cover H16B-BK-1L-CV / MCV
    Surface mounting H16B-SF-1L-CV
    Surface mounting, high construction H16B-SFH-1L /
    Cable to cable H16B-CCT-1L
    Cable to cable, high construction H16B-CCTH-1L



    How to Order?
    1. Please let us know which model and how many pieces in need.
    2. Proforma invoice will be sent to you after your confirmtion of price and all trade terms.
    3. Please check and confirm the Proforma invoice.
    4. After getting your down payment, all goods will be prepared and sent to you in by sea or air within 15 days.

    5. Shipping documents and CE, RoHS, etc will be sent to you immediately after shipment.
    6. OEM/ODM is welcomed.


    Packing
    1.Standard Package: Plastic Inner Bag + Inner Box + Big Carton + Wood Pallet (if required)
    2.Specific packaging can be made to Customer order.

    Delivery time
    We have a lot of stock upto 2000pcs each model and if it is sample order or small qty, we can send the goods immediately after recieving payment. For big order, the lead time will depends on the quantity and normally will take 7~15 days.

    Shipping Term
    If small quantity, we advise to send by courier (DHL, FEDEX, TNT and so on). For big quantity, we advise to ship by air or by sea. By sea will take longer time (15~40 days upon destination port), but very cheaper fees. We are near NINGBO and SHANGHAI port. Co shipment with other goods is ok.


    HDD 72pin  250V Heavy Duty Multi Pin Connector With Crimp Power Terminal 09160723001  for Sweeping Machine
