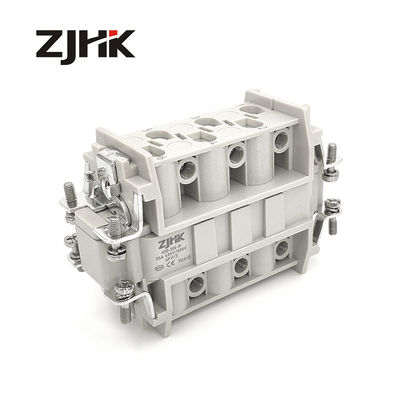

35 Amp 6 Pin Heavy Duty Wire Connector Harting Han Type 09310062601 09310062701

35 Amp 6 Pin Heavy Duty Wire Connector Harting Han Type 09310062601 09310062701

    • 35 Amp 6 Pin Heavy Duty Wire Connector Harting Han Type 09310062601 09310062701
    • 35 Amp 6 Pin Heavy Duty Wire Connector Harting Han Type 09310062601 09310062701
    • 35 Amp 6 Pin Heavy Duty Wire Connector Harting Han Type 09310062601 09310062701
  • 35 Amp 6 Pin Heavy Duty Wire Connector Harting Han Type 09310062601 09310062701

    Product Details:

    Place of Origin: China
    Brand Name: ZJHK
    Certification: CE, SGS, CQC, RoHS
    Model Number: HSB-006-M / HSB-006-F

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotible
    Packaging Details: Standard Export Cartons
    Delivery Time: 5 Days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Order Number: 09310062601 & 09310062701 Connector Type:: Higher Current 35A Connector HSB Series
    Insert Material: Polycarbonate Sabic 3412 ECR Wire Connection: Screw
    Housing Material: Die Cast Aluminium Alloy Nos Of Contacts: 6 + PE
    Current: 35A Voltage: 400V / 690V

    35 Amp 6 Pin Heavy Duty Wire Connector Harting Han Type 09310062601 09310062701
    35 Amp 6 Pin Heavy Duty Wire Connector Harting Han Type 09310062601 09310062701

    Description
    HSB series of heavy duty connectors are commonly used in high current applications. With a current rating of 35 amps at 600 volts, the HSB series offers inserts in both 6 and 12 positions. These connectors are used in wind power systems, construction machinery, utility vehicles, machine building, facility engineering and as well as in larger drives.

    Specifiation
    HSB-006 INSERTS
    Numbers of contacts 6+PE
    Electrical performance according to EN61 984
    Rated current 35A
    Rated voltage ( conductor to ground) 400V
    Rated voltage ( conductor to conductor) 690V
    Rated impulse voltage 6KV
    Pollution severity 3
    or 35A 500V 6KV 3
    Rated voltage according to UI CSA 600V
    Insulation resistance ≥1010Ω
    Material Polycarbonate, with glassfibre
    Flammability according to (UL94) V0
    Limit temperature -40℃±125℃
    Plugging cycles ≥500
    Contacts:
    Material Copper alloy
    Surface Silver Plated
    Contact resistance ≤1mΩ
    Wire connection Screw
    Wire gauge 6mm2
    AWG 10
    Tightening 1.2Nm



    Specification - Housing H16B Series

    • IP65
    • Material: Diecast Aluminium
    • Hoods - Side or top entry
    • Housing - Single or double locking levers - material by Stainless steel or Zinc-plated steel
    • PG thread or Metric thread
    • High construction hoods and housings also availabl
    • Protection covers in plastic or metal

    35 Amp 6 Pin Heavy Duty Wire Connector Harting Han Type 09310062601 09310062701

    35 Amp 6 Pin Heavy Duty Wire Connector Harting Han Type 09310062601 09310062701



    Production Line: HA, HE, HEE, HD, HDD, HM, HSB, HK, HQ Insert and Housing H6B, H10B, H16B, H24B, H32B, H48B, H3A, H10A, H16A, H32A.

    Quality Control: 100% checked before selling.

    Customized order: Specific sizes, logo & colors can be made to order. Since we have own molding centre and advanced machines, we are develop new designs every year. Please send us your details and we shall prepare individual quote upon receipt of your information.

    Fast Response: Your inquiry will be answered within 24 hours





    Our Services



    1. We are professional supplier,so we provide Low MOQ: It can meet your business very well.
    2. We work with dozens of factories to ensure competitive price, We also will treat you as our friends.
    3. Inspections:100% test before delivery.Package will do after several discussions with you.
    4. Free samples for your test,The products are directly from our factory. So it saves a lot secondary cost.
    5. OEM and ODM are acceptable,Please send us your design and other important information. OEM are always welcome.
    6. Fast door to door delivery service ,Trail order and small order are acceptable
    Any questions please feel free to contact us, 7*24 hours for you !!!
