ZJHK Waterproof Rectangular 24 Pin Heavy Duty industrial Connector HE-024

ZJHK Waterproof Rectangular 24 Pin Heavy Duty industrial Connector HE-024

    • ZJHK  Waterproof Rectangular 24 Pin Heavy Duty industrial Connector HE-024
    • ZJHK  Waterproof Rectangular 24 Pin Heavy Duty industrial Connector HE-024
    • ZJHK  Waterproof Rectangular 24 Pin Heavy Duty industrial Connector HE-024
    • ZJHK  Waterproof Rectangular 24 Pin Heavy Duty industrial Connector HE-024
  • ZJHK  Waterproof Rectangular 24 Pin Heavy Duty industrial Connector HE-024

    Product Details:

    Place of Origin: China
    Brand Name: ZJHK
    Certification: CE, SGS, CQC, RoHS
    Model Number: HE-024-M / HE-024-F

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Standard Export Cartons
    Delivery Time: 5 Days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Order Number: 09330242601 & 09330242701 Inserts: Polycarbonate Sabic 3412 ECR
    Wire Connection: Screw Housing Model: H24B Series
    Housing: Die Cast Aluminium Alloy Contacts Nos.: 24 + PE
    Current: 16A Voltage: 500V
    Package: Indivisual Packing In Box OEM: Provided





    Similar Harting 24 Pin Heavy Duty Connector Screw Terminal HE-024-M 09330242601 09330242701





    Description

    Haoke is professional factory with 7 year experiences in heavy duty connector. We are supplying a full range of product line of Heavy duty connector. Therefore, our customer can choose the needed connector much easier, which help them save time and money and therefore, improve their competition in market.

    ZJHK  Waterproof Rectangular 24 Pin Heavy Duty industrial Connector HE-024



    1) HE-024 HDC Kit is most commonly used connectors in Industrial application.

    2) Compatible with Harting Han E Series as well as Weidmuller, ILME, Sibas, .

    2) Insert material PC supplied from Sabic LEXAN 3412 ECR to gurantee the electrical functionning as well as the safe transmission of high voltage in a small space.
    3) Customers are free to choose the wire connection method, including screw terminal, crimp terminal, cape clamp terminal and quick lock terminal.
    4) The contacts are mady by high quality H62 brass, with silver or gold plated 3μm thickness.

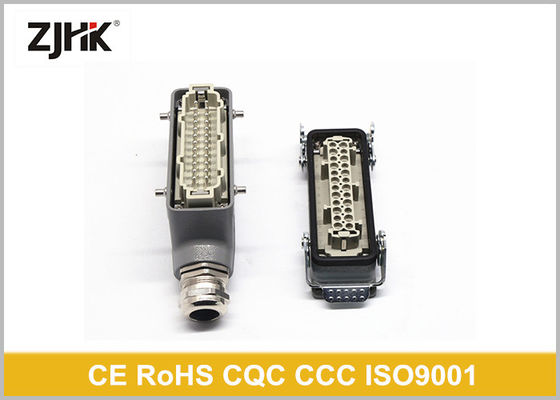

    5) A standard HE-024 assembly kit includes male insert screw terminal HE-024-M, female insert screw terminal HE-024-F, Side Entry Hood H24B-SE-4B-PG21, Bottom Open Housing H24B-BK-2L, and a plastic cable gland PG21 will be provided.

    Specification - Inserts and Contacts

    Numbers of contacts 24+PE
    Electrical performance according to EN61984
    Rated current1 16A
    Rated voltage 5 500V
    Rated impulse voltage 6KV
    Pollution degree 3
    Rated voltage according to UL 600V
    Insulation resistance ≥1010Ω
    Material Polycarbonate
    Flammability according to (UL94) V0
    Working temperature -40℃±125℃
    Plugging cycles ≥500
    Contacts
    Material Copper alloy
    Surface Silver Plated / Gold plated
    Contact resistance ≤1mΩ
    Screw terminal
    Wire gauge 0.14-2.5mm2
    AWG 26-14
    Stripping length 7.0mm
    Tightening Torque 0.5Nm





    ZJHK  Waterproof Rectangular 24 Pin Heavy Duty industrial Connector HE-024

    ZJHK  Waterproof Rectangular 24 Pin Heavy Duty industrial Connector HE-024



    Experiences: We have experiences for heavy duty connector 7 years and developed hundreds of insert and housing models, such as HA, HE, HEE, HD, HDD, HM, HK, HSB, HQ and H3A, H10A, H16A, H32A, H6B, H10B, H16B, H24B, H32B, H48B.

    Strict Test and Quality Control: 100% QC checked before selling. We confirms to ISO2008:9001 system and own various test machine, including ncluding temperature measuring device, voltage/insulation resistance tester, Silver plating density test machine, flame retardant machine, Salt spray test machine and plugging (push and pull strength) test machine.


    Facility: We own over 10000mm2 of workshop and assembly space and reach monthly output of 100,000 pieces. All the spare parts are processed in our workshop from injection, dia casting, drilling, punching, surface treatment, to assembly and packing.



    ZJHK  Waterproof Rectangular 24 Pin Heavy Duty industrial Connector HE-024

    OUR ADVANTAGE:





    OEM: We have our own mold center to enable us develop new models every year. Customer design and logo is provided.


    Competitve Price: with the help of advanced machines and assembly lines, we can redue our cost greatly and offer an competitive price to our customer and help them enter market.



    Fast Delivery:  A large number of stock enables us to provide a fast delivery within 3 days for small qty, 7~15 days for bulk order. Customized order will take 15~25 days.

    Quick response: all inquiries will be answered with 24 hours. A group of experiences engineers are ready to answer all of your questions.

    Free samples: small samples are offered freely for a quality check.



    ZJHK  Waterproof Rectangular 24 Pin Heavy Duty industrial Connector HE-024
